Microporous Ceramic Aeration Plates

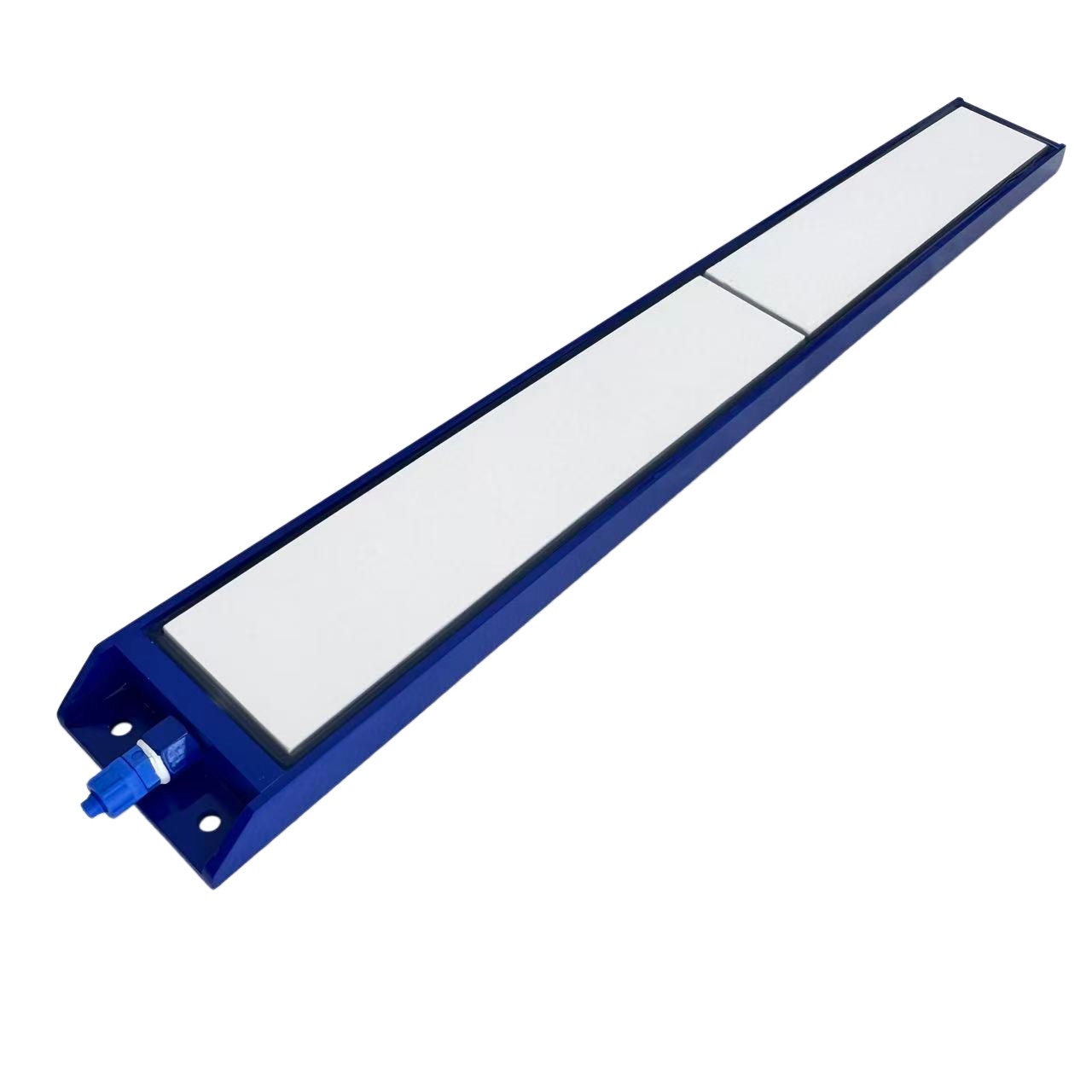

BQ390L Ceramic Aeration Plate
A large-format ceramic aeration plate with an aluminum alloy base and seawater-corrosion-resistant construction.
A large-format ceramic aeration plate with an aluminum alloy base and seawater-corrosion-resistant construction.
Large 390 cm² ceramic surface
Aluminum alloy base
Seawater-corrosion-resistant
Accepts 8–12 mm OD tubing
Technical specifications
| Base | Aluminum alloy |
|---|---|
| Flow | 2.0–3.0 L/min |
| Weight | 2,500 g |
| Ceramic area | 390 cm² |
| Max edge size | 70 × 8 × 2.8 cm |
| Max withstand | 0.7 MPa |
| Working pressure | 0.1–0.2 MPa |
Request a technical quote
Share your application, pressure, flow rate, and quantity. Our sales team will respond with a quotation and technical support.
